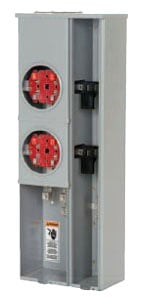

Individual Split Cover; Single Piece Tenant Cover; UL Listed for 60/75 Deg C Conductors; Completely Self-Contained Meter Centers; Two to Six 125A and 225A Breaker Positions; Outdoor Surface Mounted Enclosures; Compact, Pre-Bussed, Easy to Handle, Hang and Wire; Barrier, Sealable Compartment for Unmetered Current Carrying Parts; Aluminum/Copper Lay-In Lugs, Except Two Socket Units; Top or Bottom Feed; Bottom and Rear Branch Wiring Exits; Extra Neutral and Ground Provisions; Smaller, More Compact Design Enclosures are Lighter and Use Less Space; Removable Knockout Plate
Cable Entry Top/Bottom Feed; Interrupt Rating 100 Kiloampere; Terminal Type Line Lug; Application Small Apartment Building, Small Professional and Commercial Building
Meter Center; Type Commercial; Breaker Type QP/QPH/HQP/MP-T/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH; Voltage Rating 120/240 V; Circuit Configuration 1-Phase 3-Wire; Bus Current Rating 400 Ampere; Number of Sockets 2; Socket Type Self Contained; Socket Current Rating 200 Ampere; Socket Cover Style Ring; Number of Jaws 4; Wire Size 1/0 AWG to 750 KCMIL (Copper/Aluminum), (2) 1/0 AWG to 250 KCMIL (Aluminum), (2) 1/0 AWG to 3/0 AWG (Copper); Enclosure Type NEMA 3R, Outdoor; Enclosure Material ANSI 61 Light Gray Electrodeposited Paint on Zinc Coated G90 Steel; Mounting Surface; Size 28.53 Inch W x 7.56 Inch D x 29.75 Inch H; Approval UL; Cable Entry Top/Bottom Feed; Interrupt Rating 100 Kiloampere; Terminal Type Line Lug; Application Small Apartment Building, Small Professional and Commercial Building
Specs
- Condition: Brand New
- Brand: Siemens
- Item ID: SP4212
- Manufacturer: Siemens
- Product Type: Meter Center
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: SP4212
- Supplies Depot Part Number: 135756
