Email UsDescription
Manufactured with Cold Forming TOX Process; Solid State Overloads Standard on Sizes 5 to 8; Easy to Install; Wide Range of Enclosure Type Available; Heavy Duty Quarter Turns; 100kA Short Circuit Current Rating when Protected with Class R Fuses to 600 V or MCP to 480 V; Visible Blade Disconnect; Industrial Type Disconnect Handle
Number of Poles 3; Approval UL and CSA

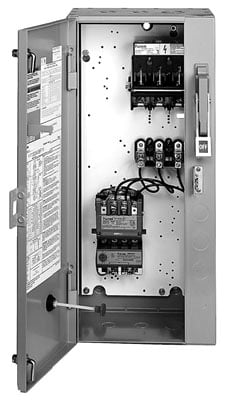

Magnetic Combination Starter; Type Combination; Line Voltage 460/575 V; Power Rating/Voltage 5 HP at 460/575 V; Phase 3; Coil Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz; Motor FLA 2.5 to 10 Ampere; Size NEMA 0; Enclosure Type NEMA 1; Disconnect Fusible; Disconnect Amps 30 Ampere at 600 V; Overloads Solid State Overload 3-Phase Class 17, Full Load Current Range 2.5 to 10 Ampere; Construction Standard NEMA; Number of Poles 3; Approval UL and CSA
Specs
- Condition: Brand New
- Brand: Siemens
- Item ID: 17CSD92BF11
- Manufacturer: Siemens
- Product Type: Magnetic Combination Starter
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 17CSD92BF11
- Supplies Depot Part Number: 79860
