Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire; Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity; Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock; Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces; Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site; Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal; Visible Stamped NEMA Configuration and Device Rating; New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention; Integral Flexible Rubber Cord Grommet Conforms to and Seals Around So Cord to Provide Protection from Oils, Water or Chips Entering Wiring Chamber

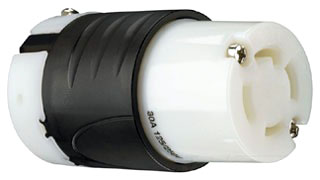

125/250 VAC, 30 A, 3-Pole, 4-Wire, Black/White Nylon 6/6, L14-30R, Locking Device Connector
Applicable Standard NEMA WD-1/WD-6; Overall Dimension 2.2 Inch Dia x 3.33 Inch L; Contact Material Brass; Grade Industrial Specification; Enclosure IP20; Operating Temperature -40 to 70 Deg C Every component of these durable Turnlok locking plugs and connectors are built to offer the lowest installed cost with maximum durability. Quick-thread assembly screws install four times faster than competitive product and backed-out screws come ready-to-wire. The rugged easy-to-grip nylon housing, clear thermoplastic terminal chambers as well as high-strength brass alloy blades and contacts combine to give Legrand the premium selection of P&S Turnlok plugs and connectors.
Locking Device Connector; Type Polarized; Constructional Feature Impact Resistant; Configuration L14-30R; Voltage Rating 125/250 VAC; Current Rating 30 Ampere; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material Nylon; Color Black, White; Cord Size 0.225 to 1.15 Inch; Approval UL 498, FSUL WC-596, CSA; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 2.2 Inch Dia x 3.33 Inch L; Contact Material Brass; Grade Industrial Specification; Enclosure IP20; Operating Temperature -40 to 70 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: L1430C
- Manufacturer: Pass & Seymour
- Product Type: Locking Device Connector
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: L1430C
- Supplies Depot Part Number: 29192
