Email UsDescription
One-Piece Brass Alloy Contact Arm for Reliable Electrical Performance; One-Piece Steel Strap with Integral Ground is Plated for Corrosion Resistance; High Strength Thermoplastic Polycarbonate Toggle Resists Breaking and Chipping Under Heavy Abuse; Heavy Duty Toggle Bumpers for Smooth and Quiet Operation; Back Body Made of Glass Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Available with Side Wire or External Screw-Pressure-Plate Back and Side Wire Models Capable of Accepting #14 to #10 AWG Copper or Copper Clad Wire; Cam Designed for Fast Make with Positive Break Action to Minimize Arcing and Prolong Switch Life; Oversized Silver Alloy Contacts for Longer Dependable Switch Life; Tri-Drive Terminal and Mounting Screws

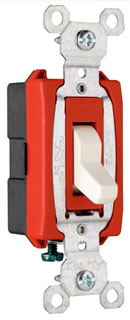

120/277 VAC, 20 A, Gray, Glass Reinforced Nylon Body, Thermoplastic Polycarbonate Toggle, Side Wiring, 1-Pole, AC Toggle Switch
Applicable Standard NEMA WD-1/WD-6 Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.
AC Switch; Type Toggle; Current Rating 20 Ampere; Voltage Rating 120/277 VAC; Operation Type Single Pole; Material Glass-Reinforced Nylon (Back Body), High-Strength Thermoplastic Polycarbonate (Toggle); Color Gray; Wiring Side; Size 1.32 Inch W x 1.073 Inch D; Wall Plate Included No; Application Commercial, Specification Grade; Approval UL 20, CSA C22.2, FSUL WS896; Applicable Standard NEMA WD-1/WD-6
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: CS20AC1GRY
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: AC Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: CS20AC1GRY
- Supplies Depot Part Number: 47064
