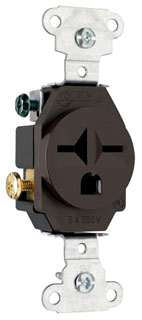

Supplies Depot: Pass & Seymour 5651 15A / 250V Single Receptacle Brown

Description

This Pass & Seymour 5651 15A / 250V Single Receptacle Brown is brand new in the original factory packaging. Supplies Depot has free shipping on orders over $99. We have plumbing, heating, electrical supplies and more in stock at our warehouse at nationally competitive prices. In stock items ship same day if ordered Monday thru Friday 8am to 5pm EST.

Auto-Ground Clip Assures Positive Ground; Two-Drive Screws Anchor Strap to Back Body and Face where Abrupt Removal Torque is Greatest; Heavy Duty, Corrosion Resistant Zinc Plated Steel Strap for Added Strength; Backed-Out Tri-Drive Steel Terminal Screws; Internal Screw Pressure Plate Back and Side Wire Capability; Two Back Wire Holes for Increased Wiring Flexibility; One Piece Brass Triple Wire Power Contacts for Lasting Retention

Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.08 Inch D x 3.28 Inch H

Straight Blade Receptacle; Type Single, Heavy-Duty; Constructional Feature Corrosion Resistant; Configuration 6-15R; Voltage Rating 250 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Automatic Grounding; Color Brown; Wiring Side; Grade Specification; Approval UL 498, CSA C22.2; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.08 Inch D x 3.28 Inch H

Specs

Condition: Brand New
Brand: Pass & Seymour
Item ID: 5651
Warranty: 1 Year Limited
Manufacturer: Pass & Seymour
Product Type: Straight Blade Receptacle

Document Downloads

Additional Part Number Information:

Equivalent Part Number: 5651
Supplies Depot Part Number: 29290
