Corrosion Resistant, Plated Steel Strap Locked into Face and Back Body to Resist Pulling Away from Face/Body Assembly; One-Piece, Brass, Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; Impact Resistant Nylon Face and Thermoplastic Back Body; Internal Screw Pressure Plate Back Wire Capable of Accepting 14 to 10 AWG Solid or Stranded Copper or Copper-Clad Wire; Terminal Compartments Isolated from Each Other for Positive Conductor Containment; Tri-Drive Terminal and Mounting Screws; Auto-Ground Clip Assures Positive Ground

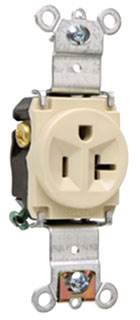

125 VAC, 20 A, NEMA 5-20R, 2-Pole, 3-Wire, Ivory, Thermoplastic Back Body, Nylon Face, Corrosion Resistant, Back/Side Wiring, Specification Grade, Grounding, Single, Heavy Duty, Straight Blade Receptacle
Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.093 Inch D x 3.28 Inch H
Straight Blade Receptacle; Type Single; Constructional Feature Corrosion Resistant, Impact Resistant; Configuration 5-20R; Voltage Rating 125 VAC; Current Rating 20 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Automatic Grounding; Material Thermoplastic (Back Body), Nylon (Face); Color Ivory; Wiring Back, Side; Grade Specification; Approval UL 498, FSUL WC596, CSA C22.2; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.093 Inch D x 3.28 Inch H
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 5361I
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Straight Blade Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 5361I
- Supplies Depot Part Number: 29148
