Auto-Ground Clip Assures Positive Ground; Two-Drive Screws Anchor Strap to Back Body and Face where Abrupt Removal Torque is Greatest; Heavy-Duty, Corrosion Resistant Zinc-Plated Steel Strap for Added Strength; Backed-Out Tri-Drive Steel Terminal Screws Internal Screw-Pressure-Plate Side Wire Capability; One Piece Brass, Triple Wire Power Contacts for Lasting Retention

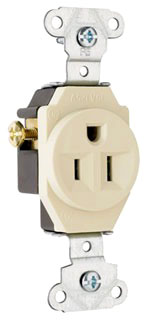

125 VAC, 15 A, NEMA 5-15R, 2-Pole, 3-Wire, Light Almond, PVC Back Body, Nylon Face, Corrosion Resistant, Side Wiring, Commercial/Specification Grade, Grounding, Single, Heavy Duty, Straight Blade Receptacle
Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.08 Inch D x 3.28 Inch H Tough nylon faces provide superior impact resistance. And the heavy-gauge steel straps provide added strength for tough applications. These dependable performers feature extra-durable, single-piece, triple-wipe brass power contacts, too.
Straight Blade Receptacle; Type Single, Heavy-Duty; Constructional Feature Corrosion Resistant; Configuration 5-15R; Voltage Rating 125 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Automatic Grounding; Color Light Almond; Wiring Side; Grade Specification; Approval UL 498, CSA C22.2; Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.08 Inch D x 3.28 Inch H
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 5251LA
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Straight Blade Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 5251LA
- Supplies Depot Part Number: 95795
