Email UsDescription
Compact, Impact Resistant Nylon Face and Body are Ultrasonically Welded Together for Unrivaled Strength; Face Color Coding by Voltage Facilitates Locating and Mating of Proper Devices; One Piece, High-Grade Brass Contacts Offer Excellent Conductivity and Heat-Rise Resistance; Clearly Marked NEMA Configuration, Rating and Third-Party Listing on Each Unit's Face; Single-Piece, Solid Brass Mounting Strap is Free of Easily Loosened Rivets Found on Other Brands; Side and External Screw Pressure Plate Back Wire Capability; Accepts #14 to #10 AWG

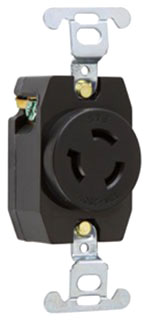

250 VAC, 15 A, 2-Pole, 3-Wire, NEMA L6-15R, Nylon, Grounding, Single, Locking Device Receptacle
Overall Dimension 0.922 Inch D x 3.281 Inch H; Face Outlet Size 1.375 Inch Dia; Applicable Standard NEMA WD-1/WD-6; Operating Temperature -40 to 75 Deg C
Locking Device Receptacle; Type Single Locking; Constructional Feature Impact Resistant; Configuration L6-15R; Voltage Rating 250 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Face Outer Diameter 1.375 Inch; Material Nylon; Wiring Back; Mounting Strap; Approval UL 498; Overall Dimension 0.922 Inch D x 3.281 Inch H; Face Outlet Size 1.375 Inch Dia; Applicable Standard NEMA WD-1/WD-6; Operating Temperature -40 to 75 Deg C
Specs
- Condition: Brand New
- Brand: Pass & Seymour
- Item ID: 4560
- Warranty: 1 Year Limited
- Manufacturer: Pass & Seymour
- Product Type: Locking Device Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 4560
- Supplies Depot Part Number: 29169
