Email UsDescription

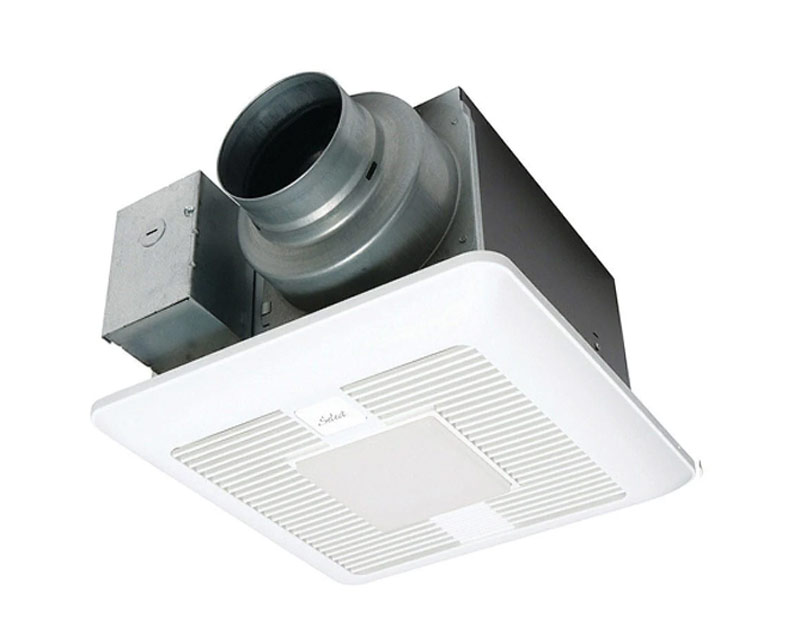

Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage; Pick-A-Flow Airflow Selector (50-80-110 CFM model) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks; Energy Star Rated
120 VAC 60 Hz, 0.19 A, 10 W, 110 CFM, 0.9 Sones, LED, Round Duct, Polypropylene Grill, 26 Gauge Zinc/Aluminum/Magnesium Coated, Ceiling, Ventilation Fan/Light
Motor Type DC (ECM); Power Rating 10.5 Watt at 0.1 Inch WG, 15.8 Watt at 0.25 Inch WG, 19.4 Watt at 0.375 Inch WG; Speed Rating 958/1203/1375 RPM; Energy Efficiency 10.5/6.9/5.2 CFM per Watt; Includes Motion Sensor Cap; Applicable Standard HVI, ASHRAE 62.2 WhisperGreen Select, our whole house IAQ solution with enhancements. First, the newly redesigned elegant grille incorporates a 10W dimmable LED chip panel with <1W LED night light for energy efficient illumination. Our improved single-hinged Flex-Z Fast bracket for more flexible and fast installation. Additionally, WhisperGreen Select includes an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design.
Ventilation Fan/Light; Type Ceiling; Voltage Rating 120 Volt AC 60 Hertz; Current Rating 0.19 Amp; Air Flow Rate 50/80/110 CFM; Sound Level 0.4 Sones at 0.1 Inch WG, 0.9 Sones at 0.25 Inch WG; Lamp Type LED; Lamp Wattage 10 Watt; Lamp Included Yes; Duct Shape Round; Duct Size 4 or 6 Inch Diameter; Grill Shape Square; Grill Size 13 Inch Length x 13 Inch Width; Grill Material Polypropylene; Housing Shape Square; Housing Material 26 Gauge Zinc/Aluminum/Magnesium; Size 10-1/4 Inch Length x 10-1/4 Inch Width x 7-3/8 Inch Height; Approval UL (Canada and US), cUL; Motor Type DC (ECM); Power Rating 10.5 Watt at 0.1 Inch WG, 15.8 Watt at 0.25 Inch WG, 19.4 Watt at 0.375 Inch WG; Speed Rating 958/1203/1375 RPM; Energy Efficiency 10.5/6.9/5.2 CFM per Watt; Includes Motion Sensor Cap; Applicable Standard HVI, ASHRAE 62.2
Specs
- Condition: Brand New
- Brand: Panasonic
- Item ID: FV0511VKL2
- Manufacturer: Panasonic
- Product Type: Ventilation Fan/Light
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: FV0511VKL2
- Supplies Depot Part Number: 1171999
