Description
120/240 VAC, 208 Star/120 VAC

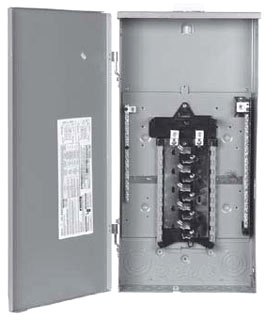

Main Lug Loadcenter; Type Main Lug; Voltage Rating 120/240 VAC, 208 Star/120 VAC; Current Rating 125 Ampere; Circuit Configuration 1-Phase 3-Wire; Maximum Number of Circuits 40; Maximum Number of Spaces (20) 1 Inch; Main Breaker Type MBK100M, MBK125M; Interrupting Rating 65 Kiloampere; Neutral Type Insulated and Bonded Split, Solid; Bus Material Aluminum; Feed Location Bottom; Main Wire Size 4 to 2/0 AWG (Copper/Aluminum); Enclosure Type NEMA 1, Indoor; Cover Type Flush/Surface; Enclosure Size Designation 1; Size 14-3/8 Inch W x 4 Inch D x 24 Inch H; Approval UL
Specs
- Condition: Brand New
- Brand: Murray
- Item ID: LC2040L1125
- Manufacturer: Murray
- Product Type: Main Lug Loadcenter
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: LC2040L1125
- Supplies Depot Part Number: 84492
