Touch Proof Recessed Screws and Tubular Contacts Provide Added Safety and Helps to Prevent Short Circuit; Tubular Contacts Connect Stripped, Un-Terminated Solid or Stranded Wire Directly to Each Contact; Integrated Stainless Steel Spring Wire Protectors Prevent Twisting and Breakage of Stranded Wire During Termination; Modular 12-Circuit Design can be Cut into Smaller Sections or Stacked End-to-End; Dead Front Design to Prevent Shorts

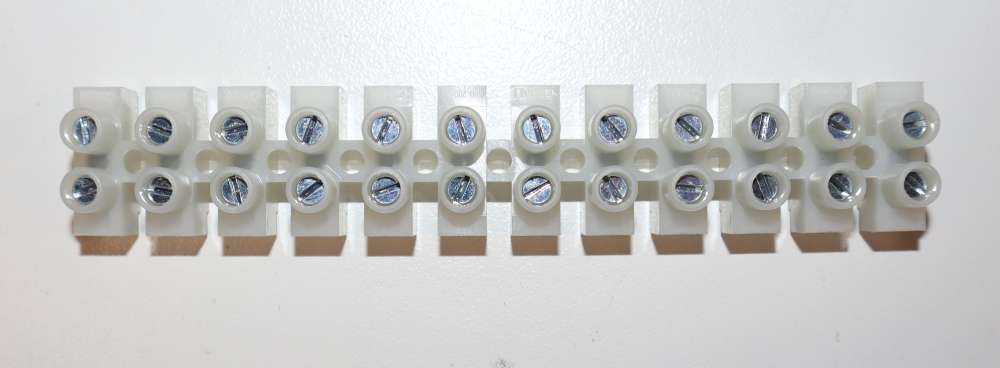

4.62 inch x 0.795 inch, 300 V, 30 A, 22 to 10 AWG Solid, 22 to 12 AWG Standard, Rugged Nylon 66, 12-Pole, 1-Piece, Terminal Block
Strip Length 0.25 Inch; Screw Finish Yellow Chromated Zinc Plated; Terminal Insert Material Nickel Plated Brass Metal Alloy; Flammability Rating UL 94-V2; Application AC or DC Volt
Terminal Block; Type 1-Piece; Number of Circuits 12; Voltage Rating 300 Volt; Current Rating 30 Amp; Wire Size 22 to 10 AWG (Solid), 22 to 12 AWG (Standard); Terminal Type Touch Proof Recessed Screw; Size 4.62 Inch Length x 0.795 Inch Width; Temperature Rating 230 Deg F; Housing Material Rugged Nylon 66; Mounting Surface; Approval UL (Canada and US), CSA; Strip Length 0.25 Inch; Screw Finish Yellow Chromated Zinc Plated; Terminal Insert Material Nickel Plated Brass Metal Alloy; Flammability Rating UL 94-V2; Application AC or DC Volt
Specs
- Condition: Brand New
- Brand: Morris
- Item ID: 22054
- Manufacturer: Morris
- Product Type: Terminal Block
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: 22054
- Supplies Depot Part Number: 96458
