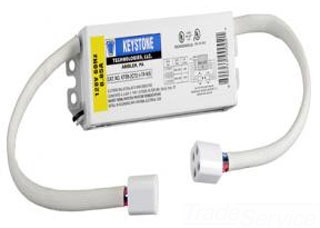

Supplies Depot: Keystone Fluorescent Ballast KTEB-2C72-1-TP-WS 120V FC8 and FC12 or FC12 and FC16

Description

This Keystone Fluorescent Ballast KTEB-2C72-1-TP-WS 120V FC8 and FC12 or FC12 and FC16 is a genuine OEM product. It is brand new in the original Keystone factory packaging. Please see below for important warranty information.

RoHS Compliant

Maximum Case Temperature 75 Deg C; Crest Factor 1.7; Ballast Efficacy Factor 0.85 at 120 V, 0.88 at 277 V; Case Material Steel

Fluorescent Electronic Ballast; Starting Type Rapid Start; Circuit Type NPF; Lamp Type FC16T9/FC12T9; Number of Lamps 2; Lamp Wattage 72 W; Input Voltage 120 VAC; Input Current 0.93 Ampere; Input Power 63 W; Frequency Rating 60 Hz; Power Factor 0.5; Ballast Factor 0.8; Maximum THD 140 Percent; Wiring Series; Minimum Starting Temperature -18 Deg C; Size 6 Inch L x 1.78 Inch W x 1.08 Inch H; Approval UL, UL (Canada and US), FCC; RoHS Compliant; Maximum Case Temperature 75 Deg C; Crest Factor 1.7; Ballast Efficacy Factor 0.85 at 120 V, 0.88 at 277 V; Case Material Steel

Specs

Condition: Brand New
Brand: Keystone
Item ID: KTEB2C721TPWS
Manufacturer: Keystone
Product Type: Fluorescent Electronic Ballast

Document Downloads

Additional Part Number Information:

Equivalent Part Number: KTEB2C721TPWS
Supplies Depot Part Number: 132473

Product Video

Shipping & Returns

Shipping: CLICK HERE for our full Shipping Policy.
Return Policy: CLICK HERE for our full Return Policy.

Need Help Matching Up a Part?

Keystone Fluorescent Ballast KTEB-2C72-1-TP-WS 120V FC8 and FC12 or FC12 and FC16 SKU: KTEB-2C72-1-TP-WS
