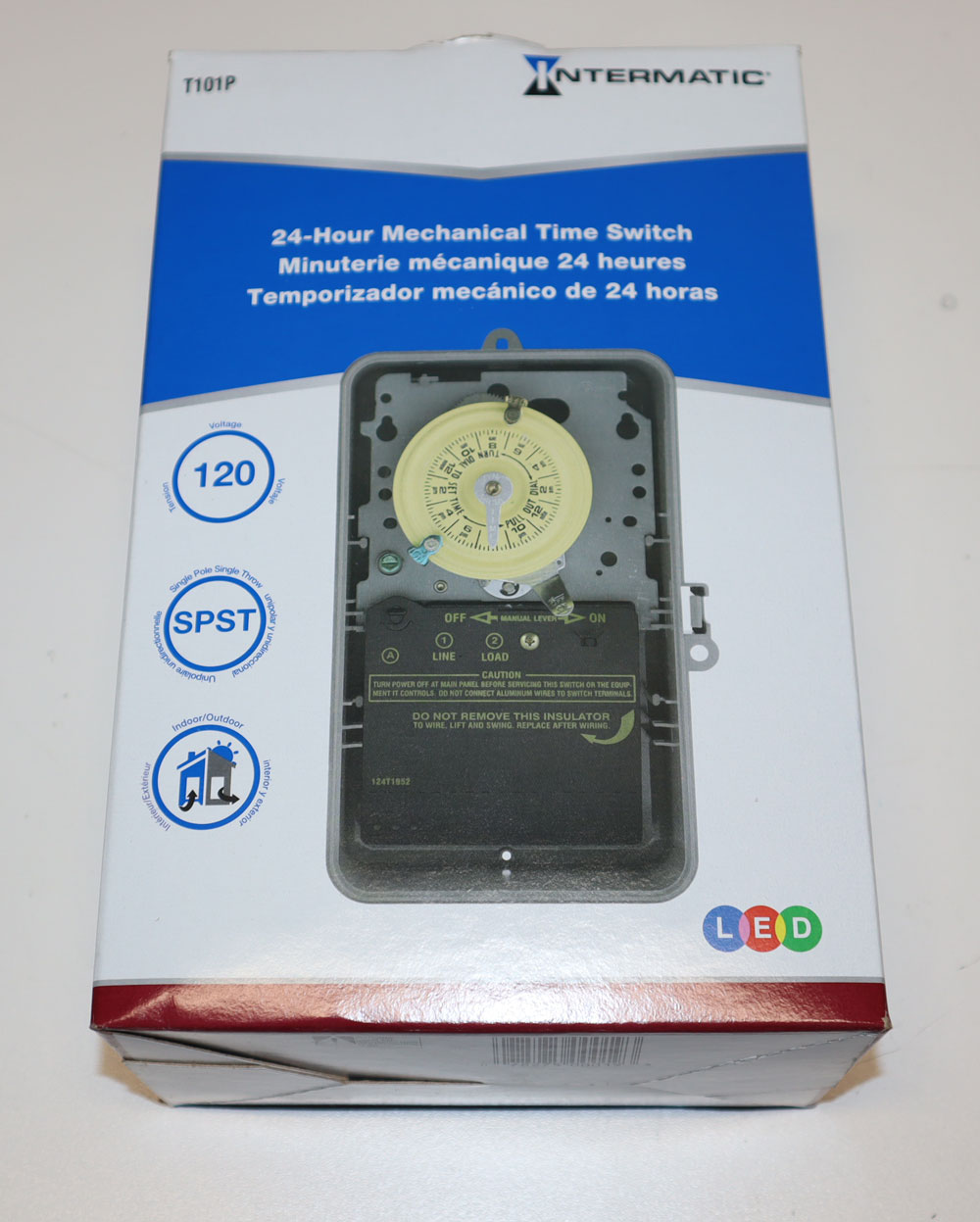

The T100 Series Mechanical Time Switch has Proven it Can Stand the Test of Time; These Dependable Time Switches Can Handle Electrical Loads up to 40 Ampere per Pole and Allow for up to 12 ON/OFF Operations per Day; Direct 24-Hour Control of Most Loads; Manual Override; 1 Year Limited Warranty 24 Hr, 5 HP, 120 VAC, 40 A, SPST, Plastic, Mechanical Time Switch 2 HP (24 FLA) @ 120V, 5 HP (28 FLA) @ 240V, 1000 VA (Pilot Duty)
Electromechanical Time Switch; Type 24 Hr; Maximum Number of Operations 12 per Day; Minimum ON Time 1 Hr; Minimum OFF Time 1 Hr; Switch Type SPST; Current Rating 40 Ampere (Resistive/Inductive/Tungsten), 16 Ampere at 277 VAC (Ballast); Voltage Rating 120 VAC at 60 Hz; Power Rating 2 HP (24 FLA) at 120 VAC, 5 HP (28 FLA) at 240 VAC, 1000 VA (Pilot Duty); Reserve Power No; Operating Temperature -40 to 130 Deg F; Enclosure NEMA 3R; Material Plastic; Finish Gray; Size 6-1/2 Inch W x 4 Inch D x 10 Inch H; Application Indoor/Outdoor Lighting, Signs, Filters, Electric Fences, Fans, Conveyers, Pool Heaters, Blowers, Pumps; Approval UL (Canada and US), CSA (Canada and US); Knockout Size (1) 1/2 Inch-3/4 Inch Combination (Side/Back), (2) 1/2 Inch-3/4 Inch Combination (Bottom); Maximum Power Consumption 3 W; Includes ON/OFF Tripper
Knockout Size (1) 1/2 Inch-3/4 Inch Combination (Side/Back), (2) 1/2 Inch-3/4 Inch Combination (Bottom); Maximum Power Consumption 3 W; Includes ON/OFF Tripper
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: T101P
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Electromechanical Time Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: T101P
- Supplies Depot Part Number: 28895
