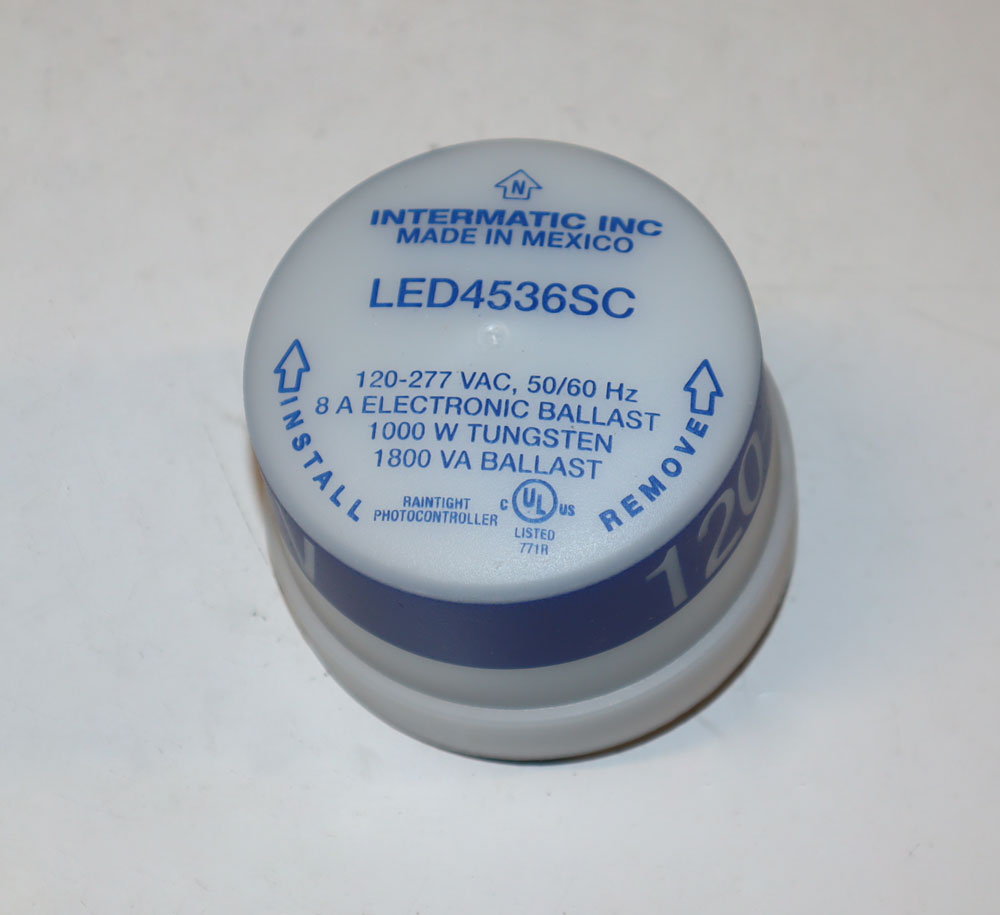

Supplies Depot: Intermatic LED4536SC Spec Grade Locking Electronic Photocontrol

Description

This Intermatic LED4536SC Spec Grade Locking Electronic Photocontrol is a genuine OEM product. It is brand new in the original Intermatic factory packaging. Please see below for important warranty information.

Ideal for High-Performance LED Fixtures, Totaling 2220 W at 277 V AC; Non-Drifting Silicon Light Sensor IR Filtered for Human Eye Response; Enhanced Conformal Coating on All Components 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Relay, Twist-Lock Electronic Photocontrol Dielectric Strength 2500 VAC

Electronic Photocontrol; Type Relay; Voltage Rating 105 to 305 VAC at 50/60 Hz; Tungsten Load Rating 1000 W; Ballast Load Rating 1800 VA; Response Feature Instant ON, Delay OFF; Surge Arrester Type MOV; Surge Arrester Rating 510 J; Turn ON Light Level 1.5 FC; Turn OFF Light Level 2.25 FC; Temperature Rating -40 to 158 Deg F; Mounting 3-Prong Twist, Locking; Size 76.2 MM W x 69.9 MM H; Application Multi-Fixture Interstate, Roadway, Pedestrian Pathway, Parking Lot/Exterior/Street/Landscape Lighting; Approval UL, CSA (Canada and US); RoHS Compliant; Dielectric Strength 2500 VAC

Specs

Condition: Brand New
Brand: Intermatic
Item ID: LED4536SC
Warranty: 1 Year Limited
Manufacturer: Intermatic
Product Type: Electronic Photocontrol

Document Downloads

Additional Part Number Information:

Equivalent Part Number: LED4536SC
Supplies Depot Part Number: 571889
