The IG Series Surge Protective Devices (SPD) are Designed for a Variety of Applications; A Green LED Indicator Provides Status of Protection; Trusted, State-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) Surge Protection Technology Eliminates the Potentially Hazardous Failure Modes that are Commonly Associated with Standard MOV Technology; Three or Six Modes of Surge Protection Depending on Model; 5 Year Limited Warranty

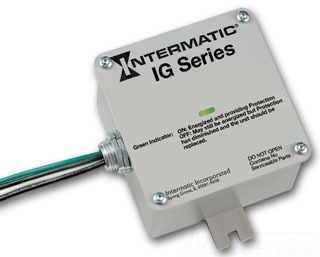

120/240 VAC, 1-Phase, 20 kA, NEMA 3R, Surge Protective Device
Short Circuit Current Rating 50 Kiloampere; Housing Material Plastic; Nominal Discharge Current Rating 20 Kiloampere The IG Series Surge Protective Devices (SPD) are designed for a variety of applications. A green LED indicator provides status of protection. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure Mode that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA certified to ANSI/UL 1449, 3rd Edition.
Surge Protective Device; Voltage Rating 120/240 VAC; Circuit Configuration 1-Phase; Modes of Protection L1-N, L2-N, L1-G, L2-G, N-G, L1-L2; Connection Type 30 Inch 12 AWG Lead Wire; Operating Temperature -31 to 185 Deg F; Enclosure NEMA 3R; Size 4.18 Inch W x 3.33 Inch D x 5.65 Inch H; Mounting 1/2 Inch Threaded Nipple; Application Analog Phone Line, Modem, DSL, Cable TV, Cable Internet, Satellite TV, Indoor, Outdoor; Approval UL 1449, CSA (Canada and US); Used On Service Entrances and Utility Meter Cabinet; Short Circuit Current Rating 50 Kiloampere; Housing Material Plastic; Nominal Discharge Current Rating 20 Kiloampere
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: IG1240RC3
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Surge Protective Device
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: IG1240RC3
- Supplies Depot Part Number: 274102
