Email UsDescription

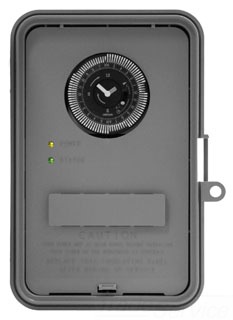

The GM40AV Time Control is a Universal, Electromechanical Time Switch Designed for General Purpose Residential and Commercial Applications; The Robust 40 Ampere Time Control Automatically Detects the Input Voltage without the Use of a Dip Switch or Selector Pins; The Time Control Automatically Selects any Voltage Between 120 VAC and 277 VAC; The Mechanism is Mounted in a Compact UL Type 3R Outdoor Enclosure and Can also be Easily Retrofitted into Other Intermatic Enclosure Types; The Time Control Features a DPDT Switching Configuration Standard (i.e. Two Normally Open and Two Normally Closed Contacts); Power and Status LED Indicators; DPDT Switching Configuration Standard (2 NO and 2 NC Contacts); Manual Three-Way ON/OFF/Auto Override Switch; Easy-to-Read Clock Face; 1 Year Limited Warranty
120 to 277 VAC 60 Hz, 40/30 A, 24 Hr, Plastic, DPDT, Electromechanical Time Switch
1 HP (16 FLA, 90 LRA) @ 120V, 2 HP (12 FLA, 52 LRA) @ 208 to 277V (NO), 1 HP (12 FLA, 30 LRA) @ 120V, 2 HP (10 FLA, 30 LRA) @ 240V (NC), 300 VA (Pilot Duty) @ 120 to 240V The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard.
Electromechanical Time Switch; Type 24 Hr; Minimum ON Time 15 Min; Minimum OFF Time 15 Min; Switch Type DPDT; Current Rating 40 Ampere at 120 to 277 VAC (Resistive), 15 Ampere at 120 VAC (Tungsten), 30 Ampere at 120 VAC (Ballast), 20 Ampere 277 VAC (Ballast) (NO)/30 Ampere at 120 to 277 VAC (Resistive), 2 Ampere at 120 VAC (Tungsten), 10 Ampere 277 VAC (Ballast) (NC); Voltage Rating 120 to 277 VAC at 60 Hz; Power Rating 1 HP (16 FLA, 90 LRA) at 120 VAC, 2 HP (12 FLA, 52 LRA) at 208 to 277 VAC (NO), 1 HP (12 FLA, 30 LRA) at 120 VAC, 2 HP (10 FLA, 30 LRA) at 240 VAC (NC), 300 VA (Pilot Duty) at 120 to 240 VAC; Reserve Power No; Operating Temperature -40 to 131 Deg F; Enclosure NEMA 3R; Size 6.61 Inch W x 3 Inch D x 8.88 Inch H; Application Lighting Control, Access Control, Commercial Refrigeration, General Electrical Circuits, Pumps, Motors, Fan Control; Approval UL (Canada and US); ROHS Compliant; Wiring Connection Screw Box Lug Terminal
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: GM40AV
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Electromechanical Time Switch
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: GM40AV
- Supplies Depot Part Number: 274044
