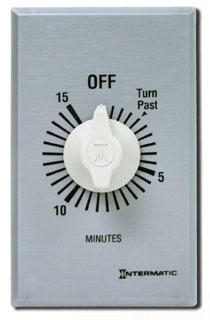

ROHS Compliant; Designed to Replace any Standard Wall Switch-Single or Multi-Gang; This Series of Energy-Efficient Mechanical Timers Do not Require Electricity to Operate; They Automatically Limit the On Times for Fans, Lighting, Motors, Heaters, other Energy Consuming Loads; Hold Feature Enables User to Override the Automatic Shut-Off Function; Rugged Time Dial Plate Easily Withstands the Abuse Encountered in Commercial Environments; Time Saving up Front Terminal Connection with Teeter-Type Terminals; Press-On Knob Design Ensures Quick and Easy Installation; 1 Year Warranty Limited
1-3/4 inch x 1-1/4 inch x 4-1/8 inch, 125 to 277 VAC at 60 Hz, 15 Min, SPST, Brushed Metal Plate, White (Knob), Commercial, Spring Wound Countdown Timer
ROHS Compliant
Spring Wound Auto Off Timer; Type Commercial; Time Cycle 15 Min; Operation Type Without Hold; Switch Type SPST; Contact Current Rating 20 Ampere at 125 VAC 50/60 Hz, 10 Ampere at 250/277 VAC 50/60 Hz (Resistive), 7 Ampere at 125 VAC 50/60 Hz (Tungsten); Contact Power Rating 1 HP at 125 VAC 50/60 Hz, 2 HP at 250 VAC 50/60 Hz; Operating Temperature 32 to 104 Deg F; Color Brushed Metal Wall Plate, White Knob; Mounting Wall; Size 1-3/4 Inch W x 1-1/4 Inch D x 4-1/8 Inch H; Application Fan, Lighting, Motor, Heater; Approval UL (Canada and US), CSA (Canada and US); ROHS Compliant
Specs
- Condition: Brand New
- Brand: Intermatic
- Item ID: FF15MC
- Warranty: 1 Year Limited
- Manufacturer: Intermatic
- Product Type: Spring Wound Auto Off Timer
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: FF15MC
- Supplies Depot Part Number: 111250
