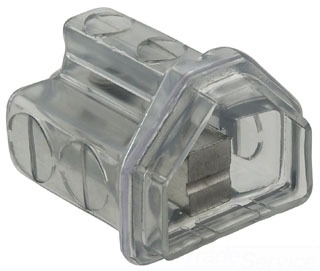

Supplies Depot: Ilsco PCT-4-4 4-14 Clear Tap Connector

Description

This Ilsco PCT-4-4 4-14 Clear Tap Connector is brand new in the original factory packaging. Supplies Depot has free shipping on orders over $99. We have plumbing, heating, electrical supplies and more in stock at our warehouse at nationally competitive prices. In stock items ship same day if ordered Monday thru Friday 8am to 5pm EST.

Transparent Flexible Insulating Cover-No Taping and Allows Visual Inspection of Connection; Captive Pressure Screws-No Wasted Time Finding Screws; Self-Closing Openings No Lost or Loose Caps and Plugs; Access from Both Sides of Connector Provides Greater Versatility; Dual Rated for Copper or Aluminum Conductor

Size 2.46 Inch L x 1.57 Inch W x 1.43 Inch H; Screw Type Slot; Current Rating 95 Ampere; Temperature Rating 90 Deg C, -45 Deg C (Cold)

Multi-Tap Connector; Voltage Rating 600 V; Number of Ports 4; Cable Entry 2 Side Entry; Conductor Material Copper/Aluminum; Minimum Conductor Size 14 AWG; Maximum Conductor Size 4 AWG; Approval UL 453G, UL 486A/B, CSA; ROHS Compliant; Size 2.46 Inch L x 1.57 Inch W x 1.43 Inch H; Screw Type Slot; Current Rating 95 Ampere; Temperature Rating 90 Deg C, -45 Deg C (Cold)

Specs

Condition: Brand New
Brand: ILSCO
Item ID: PCT44
Manufacturer: ILSCO
Product Type: Multi-Tap Connector

Document Downloads

Additional Part Number Information:

Equivalent Part Number: PCT44
Supplies Depot Part Number: 229641
