Description
Time Delay for Motor Starting Inrush Currents without Nuisance Opening; Highly Current Limiting for Low Peak Let-Thru Current; Improved Cycling Ability for Frequent Motor Starts/Stops without Nuisance Fuse Opening; Improved Cycling Ability for Frequent Motor Starts/Stops without Nuisance Fuse Opening; Rejection Style Design Prevents Replacement Errors When Used with Recommended Fuse Blocks; High Visibility Orange Label Ensures Instant Recognition and Simplifies Replacement; Metal-Embossed Date and Catalog Number for Easier Traceability and Lasting Identification; Fiberglass Body Provides Dimensional Stability in Harsh Industrial Environments; High Grade Silica Filler Ensures Fast ARC Quenching and Optimum Current Limiting

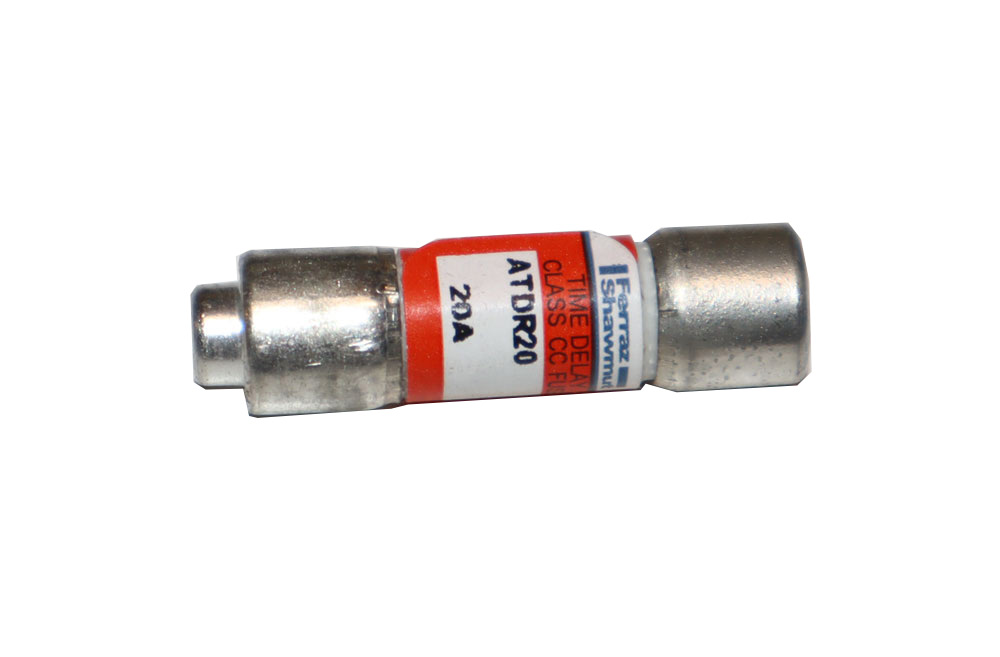

20 A, 600 VAC/300 VDC, 200 kA, Class CC Rejection, Ferrule, Time Delay, Midget Fuse
Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Small Motors; Contactors, Lighting, Heating, General Loads, Branch Circuit Protection Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 no damage protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Midget Fuse; Type Class CC Rejection; Characteristics Time Delay; Voltage Rating 600 VAC, 300 VDC; Current Rating 20 Ampere; Interrupting Rating 200 Kiloampere (AC)/100 Kiloampere (DC); Terminal Type Ferrule; Diameter 0.41 Inch; Length 1.5 Inch; Approval UL 248-4, CSA C22.2; Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Small Motors; Contactors, Lighting, Heating, General Loads, Branch Circuit Protection
Specs
- Condition: Brand New
- Brand: Gould
- Item ID: ATDR20
- Manufacturer: Gould
- Product Type: Midget Fuse
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: ATDR20
- Supplies Depot Part Number: 76877
