Email UsDescription

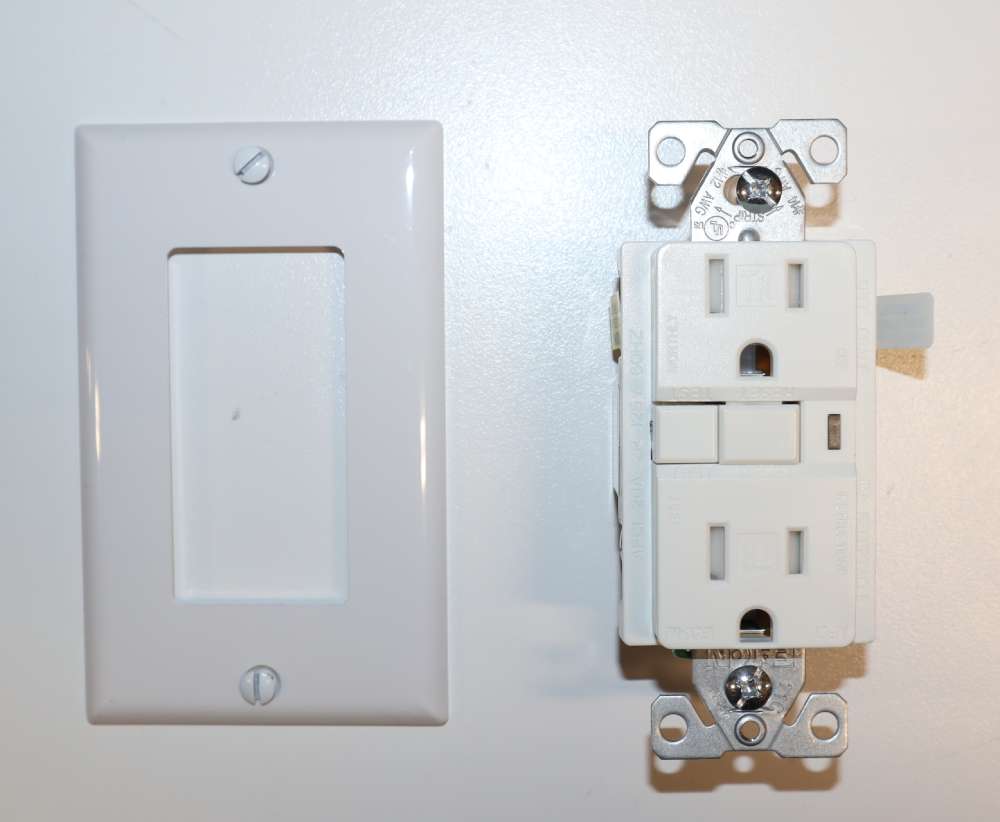

Protects Against Arc Faults in Wiring Resulting from Damaged Insulation and Other Causes that Can Lead to Electrical Fires; Outlet Branch Circuit (OBC) AFCI Receptacles Protect from Series and Parallel Arcs Downstream; Outlet Branch Circuit (OBC) AFCI Receptacles also Provide Protection from Upstream Series Arcs (No AFCI Receptacle from Any Manufacturer Can Protect from Upstream Parallel Arcs); Tamper Resistant Products Comply with 2014 NEC Article 406.12 for All Dwelling Units; Ground Termination with Backwire Clamp Provides Secure Wiring and Reduces Installation Time; Line Side Terminals are Backed Out and Staked for Fast Installation; When Downstream Receptacles are Wired from Load Side, a 20 Ampere Feed-Through Rating Offers Full Protection; Tri-Combo Head Terminal and Mounting Screws
Terminal Wire Size 14 to 10 AWG; Temperature Rating -31 to 150.8 Deg F; Flammability Rating UL 94 V-2
AFCI Receptacle; Type Duplex; Constructional Feature Tamper Resistant; Configuration 5-15R; Voltage Rating 125 VAC; Current Rating 15 Ampere; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Nylon (Face), PVC (Base); Color White; Wiring Back, Side; Grade Commercial; Approval UL (Canada and US), UL 498, NOM 426; Terminal Wire Size 14 to 10 AWG; Temperature Rating -31 to 150.8 Deg F; Flammability Rating UL 94 V-2
Specs
- Condition: Brand New
- Brand: Eagle
- Item ID: TRAFCI15W
- Manufacturer: Eagle
- Product Type: AFCI Receptacle
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: TRAFCI15W
- Supplies Depot Part Number: 547463
