Electrical Insulation Putty Can be Wrapped, Stretched or Molded Around Irregular Shapes for Quick, Smooth Insulation Build-Up; Use 3M Scotchfil Putty to Insulate Connections up to 600 V and to Round Out High-Voltage Connections to Gear, Smooth Bus Bar Irregularities, and Make a Moisture Seal at Ground Wire Exits in High-Voltage Splices
1.5 inch x 60 inch x 125 Mil, Black, Mastic Adhesive/Putty Backing, Sealing, Electrical Insulating Tape

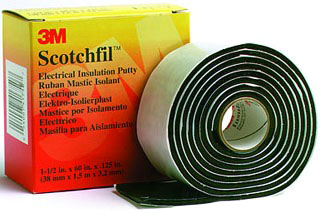

3M Scotchfil Electrical Insulation Putty comes in a tape form that is used to insulate irregular surfaces like fittings and valves. This self-fusing, electrical-grade tape can be stretched or wrapped and helps to insulate connections up to 600V. It withstands a wide temperature range of 32 to 176 degrees F (0 to 80 degrees C). 3M Scotchfil Electrical Insulation Putty is a 125-mil thick, non-corrosive, mastic adhesive that offers optimized adherence. This tape-shaped putty has outstanding aging properties and is ideal for creating a resin dam at resin pressure joints. It helps to seal multi-conductor cable connections, as well as wire exits at high-voltage joints. RoHS 2011/65/EU Compliant.
Electrical Insulation Putty Tape; Type Electrical Insulating; Length 60 Inch; Width 1.5 Inch; Thickness 125 Mil; Material Mastic; Finish Black; Dielectric Strength 22.6 KV per MM; Maximum Continuous Temperature 32 to 176 Deg F
Specs
- Condition: Brand New
- Brand: 3M
- Item ID: SCOTCHFIL
- Manufacturer: 3M
- Product Type: Electrical Insulation Putty Tape
Document Downloads
Additional Part Number Information:
- Equivalent Part Number: SCOTCHFIL
- Supplies Depot Part Number: 29013
